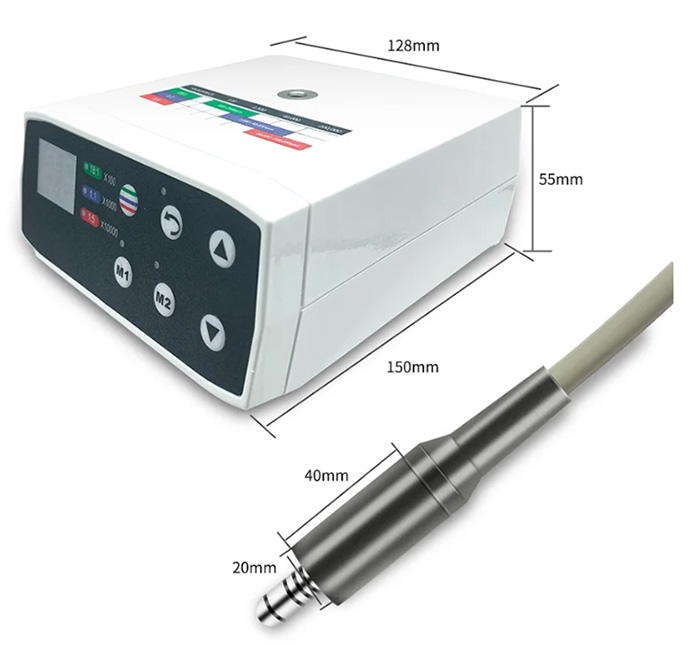

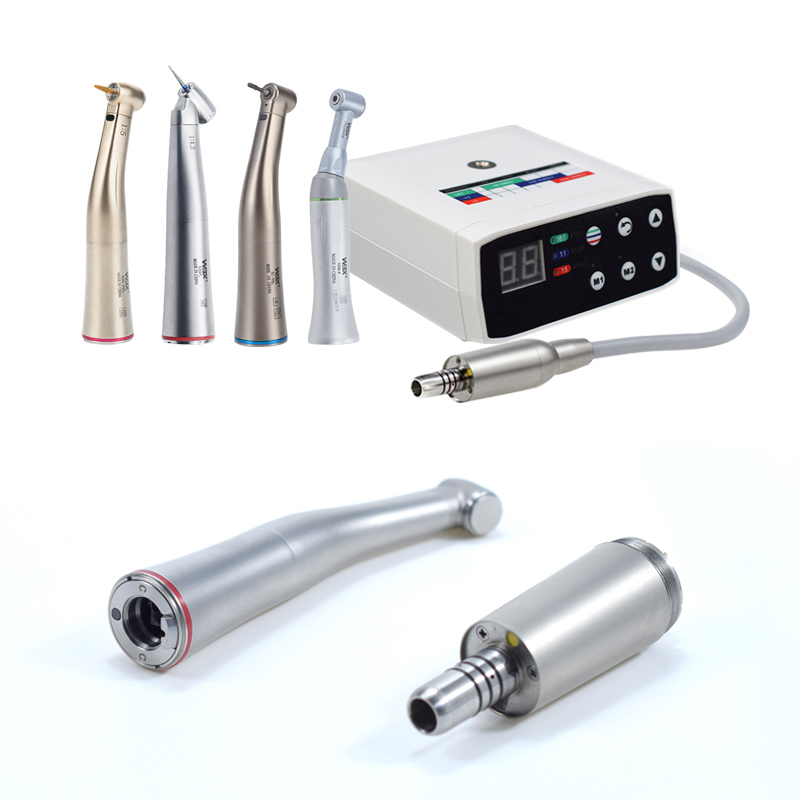

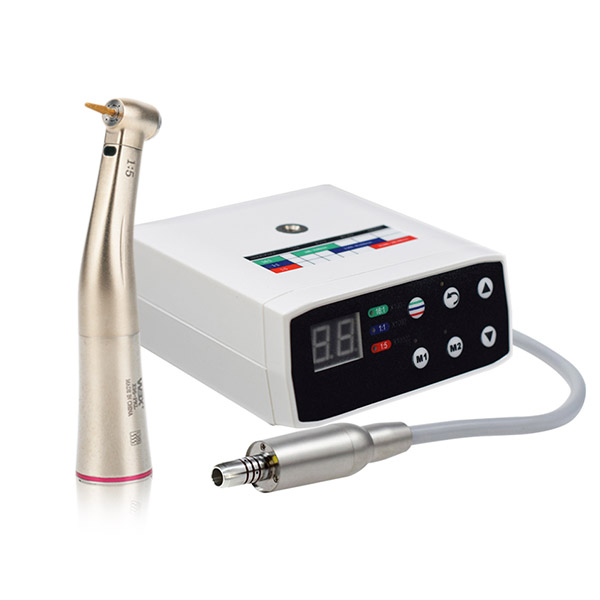

Dental Brushless Electric micro motor
Description：
*Precision torque control - Maintains a constant speed at variable working pressures, improving tactile feel and handling.
*Brushless micro motor, max speed: 200,000rpm
*32,000lux white led in the motor, compatible with fiber optic contra angle

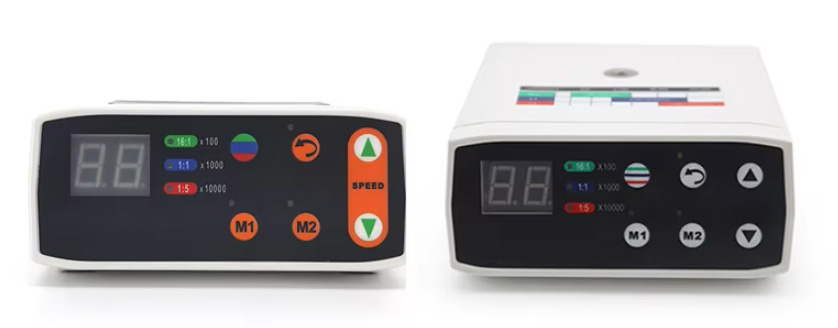

*Touch Screen panel offers user-friendly operation
*Digital speed read-out, Easy speed adjustment

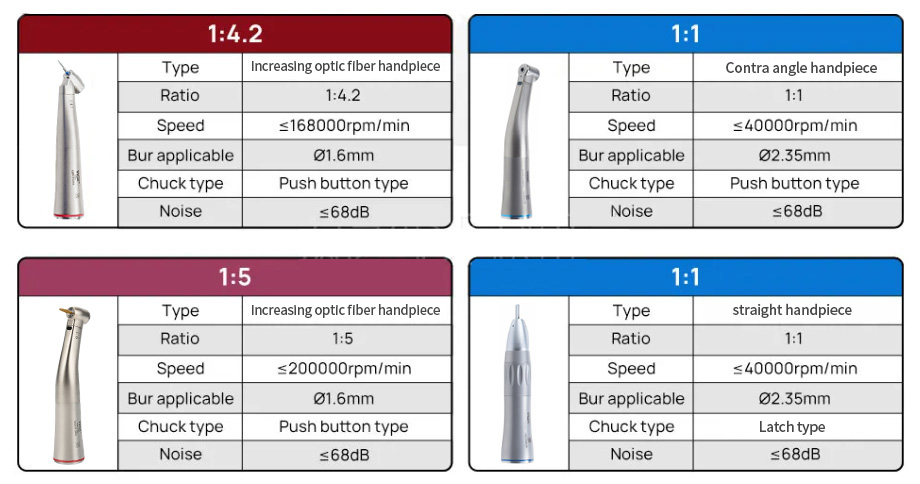

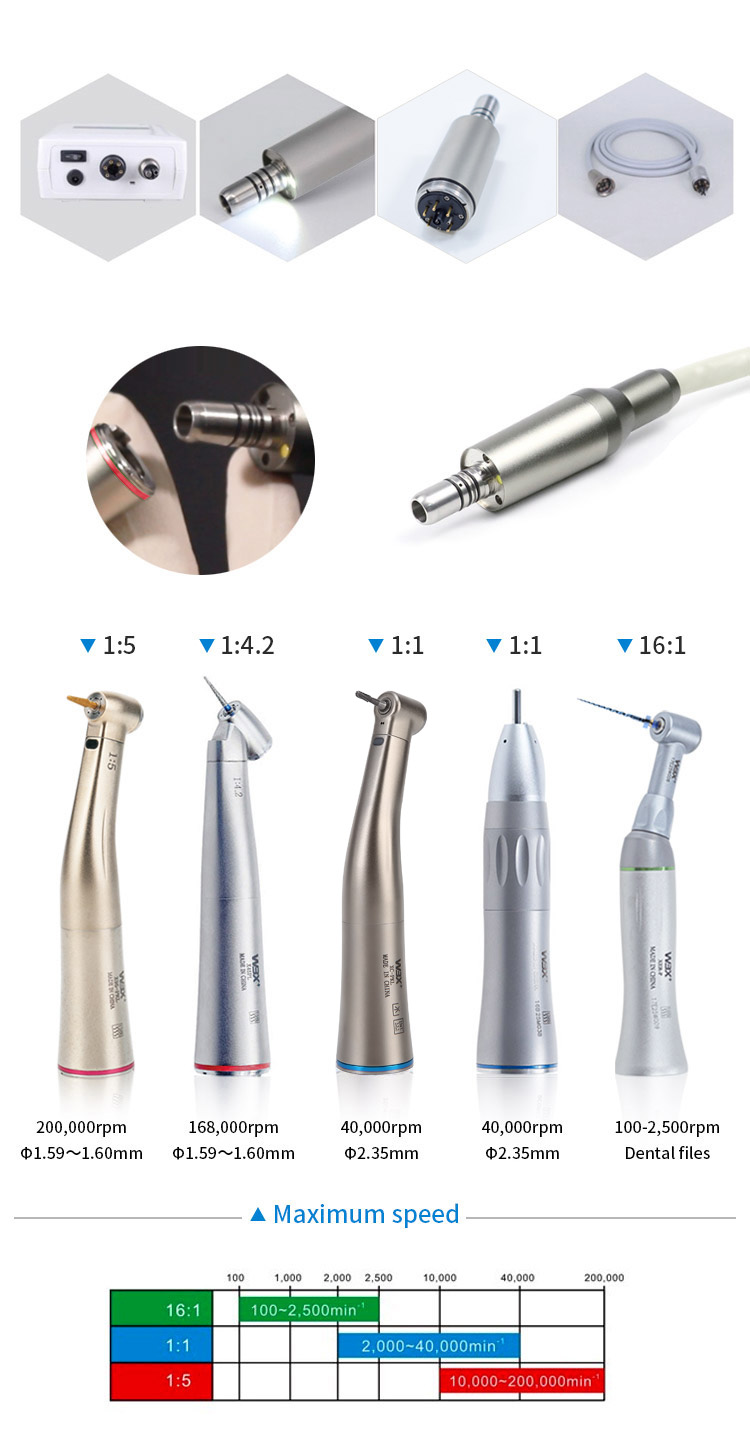

*Three operation modes(1:1/16:1/1:5)
*E-Type connector
Available for various E-type motors in accordance with ISO standard(*Compatible with all e-type motors）
Features：
1.This product is operated manually control counter clockwise and transform clockwise

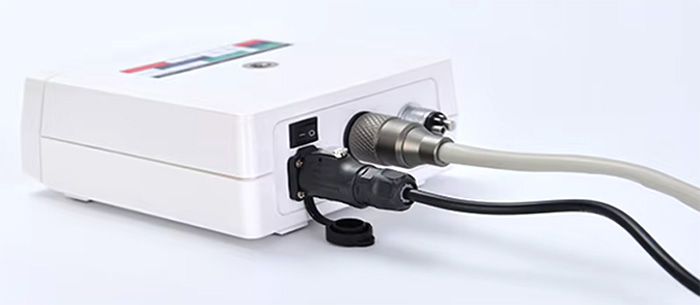

2.The product can be connected to the dental chair,
3.The motor ratio can be adjusted to adapt to different dental handpieces.

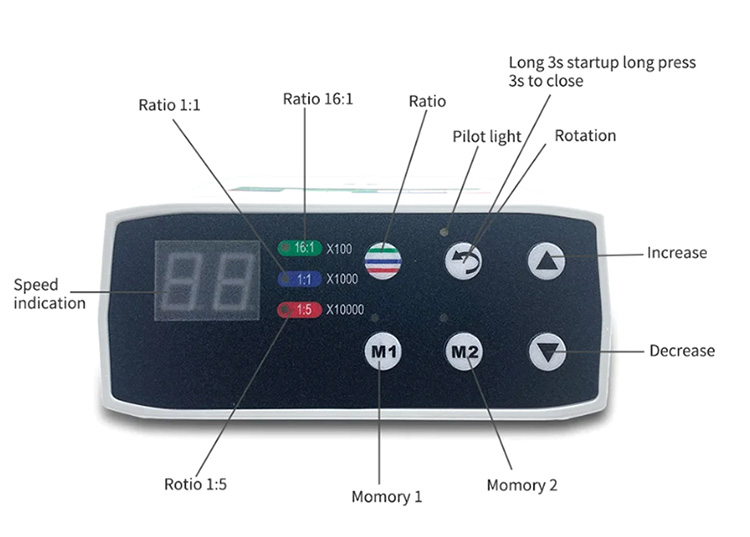

Press the selection button "S" to switch speed ratio，
Press the "M1" or "M2" button to output the recorded RPM.
Information:
| Name: | Dental brushless electric motor |
| Type: | Dental handpiece |
| Power source: | Electricity |
| Body: | ABS Plastic |
| Material: | Stainless/ABS |
| With fiber optic or not: | Yes |
| Ratio: | 16:1/1:1/1:5 |
| Rotating speed: | Max.40,000 RPM |
| Connection: | E-type |
| LED: | white LED light |
| Noise: | ≤40dB |
| Water spray: | Internal spray |
| Motor type: | Brushless |
| Voltage: | 110V or 220V AC |

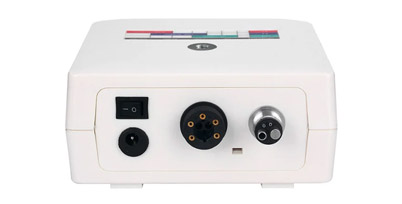

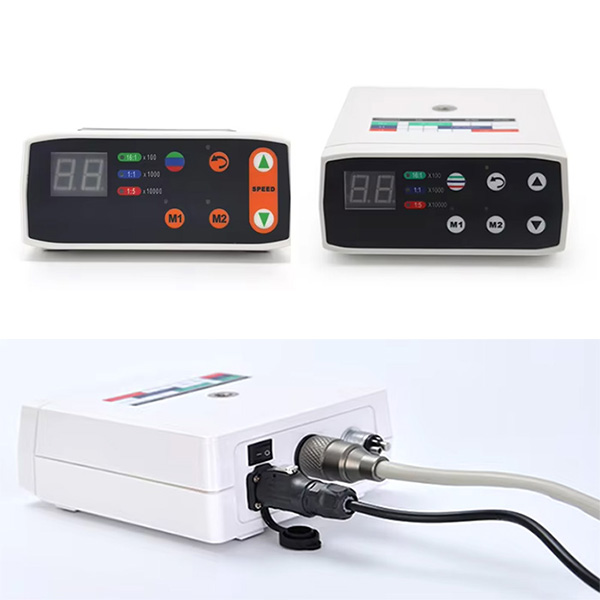

Connect 2 holes dental chair tube

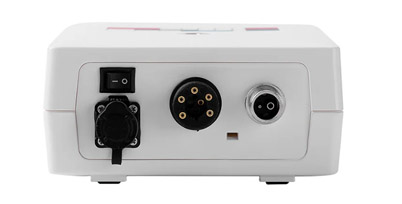

Connect 4 holes dental chair tube
